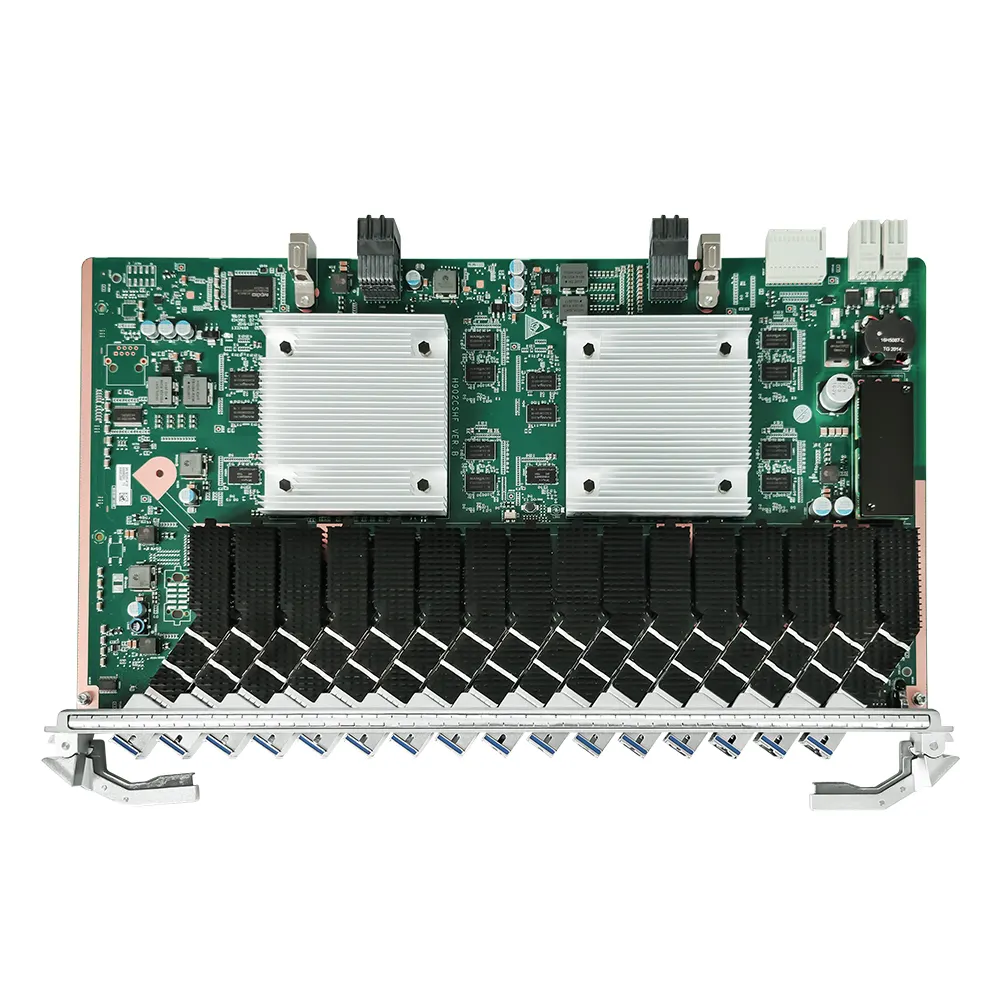

Huawei  H902CSHF XGSPON & GPON C+  16-port interface board for MA5800

Huawei 16-port Symmetric 10G GPON and GPON combo OLT Interface Board with XGSPON & GPON C+ Optical Module.

The published price is an indicative final price.
We will be happy to inform you of the current VO price immediately upon request.

Features
• Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system
• Support XGS-PON, XG-PON and GPON
• Max split radio: 1:256
• GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/ s
• XGS-PON channel: Tx: 9.953Gbit/s, Rx: 9.953/2.488Gbit/s
• Interface Type: SC

Functions
Forwarding capability: 200 Gbit/s
Rate mode: Symmetric rate
T-CONTs per PON port: GPON: 1024 /XG(S)-PON: 2048
Service flows per PON board: 16352
Maximum frame size: 2052 bytes/9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses: 131072
Maximum distance difference between two ONUs under the same PON port: 40 km

Technical specs
Type: One-fiber bi-directional optical module

Operating Wavelength:
GPON channel: Tx: 1490 nm / Rx: 1310 nm
XG-PON & XGS-PONchannel: Tx: 1577 nm/Rx: 1270 nm
Encapsulation Type: SFP+

Port Rate
GPON channel: Tx: 2.488 Gbit/s / Rx: 1.244 Gbit/s
XGS-PON channel: Tx: 9.953 Gbit/s / Rx: 9.953/2.488Gbit/s

Minimum Output Optical Power: GPON channel: 3 dBm / XGS-PON channel: 5 dBm
Maximum Output Optical Power: GPON channel: 7 dBm / XGS-PON channel: 8 dBm
Maximum Receiver Sensitivity: GPON channel: -32 dBm / XG-PON channel: -30.5 dBm / XGS-PON channel: -29 dBm
Optical Connector Type: SC
Optical Fiber Type: Single-mode
Overload Optical Power: GPON channel: -12 dBm / XG-PON channel: -10 dBm / XGS-PON channel: -8 dBm
Extinction Ratio: 8.2 dB

Physical data
Dimensions (W x L x H): 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption : Static: 48 W / Maximum: 98 W
Operating temperature: -40°C to +65°C
