Basic Information

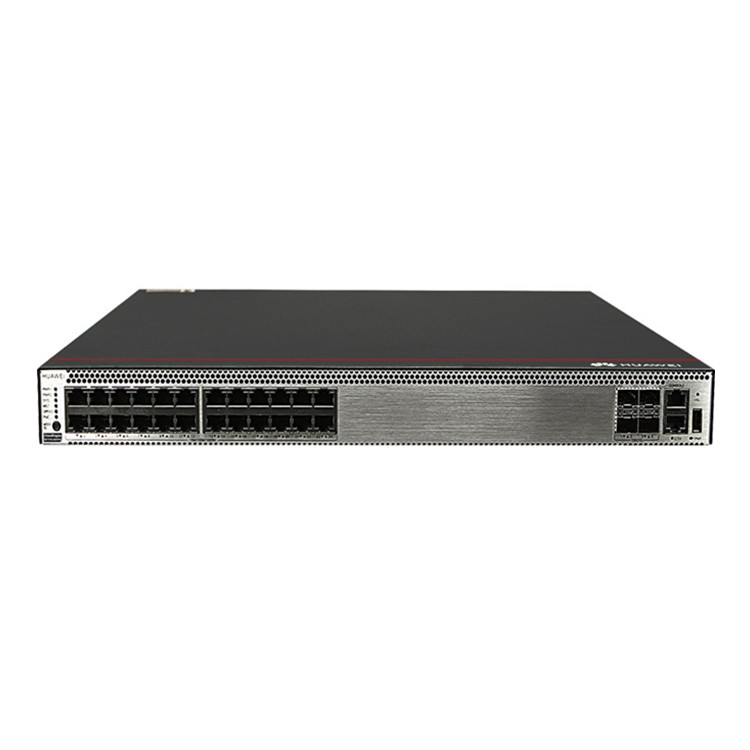

Description	S5731-S24T4X (24*10/100/1000BASE-T ports,4*10GE SFP+ ports,without power module)
Part Number	02353AHU
Model	S5731-S24T4X
First supported version	V200R019C00
Technical Specifications
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.64 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1
Weight without packaging [kg(lb)]	5.28 (11.64)
Weight with packaging [kg(lb)]	8.4 (18.52)
Typical power consumption [W]	88
Typical heat dissipation [BTU/hour]	300.26
Maximum power consumption [W]	114
Maximum heat dissipation [BTU/hour]	389
MTBF [year]	57.73
MTTR [hour]	2
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	57.5
Noise at normal temperature (acoustic pressure) [dB(A)]	47.5
Number of card slots	0
Number of power slots	2
Number of fans modules	2
Redundant power supply	1+1 Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	- AC input: 100–240 V AC; 50/60 Hz - High-voltage DC input: 240 V DC - DC input: –48 V DC to –60 V DC
Input voltage range [V]	- AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: –38.4 V DC to –72 V DC
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
Service port surge protection [kV]	Common mode: ±6 kV
Power supply surge protection [kV]	- Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode - Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types of fans	Pluggable
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from front, air exhaustion from rear  (front-to-rear)
Certification	EMC certification Safety certification Manufacturing certification
